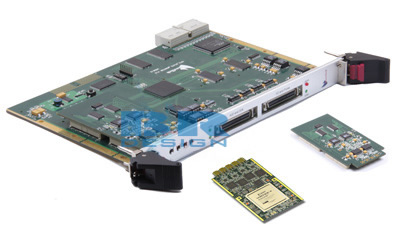

The acquisition card is a high-speed data acquisition card with a CPCI interface and a 10M sampling rate. This card supports the Windows 2000/XP operating system and is suitable for applications in areas such as ultrasonic testing.
Characteristics of the acquisition card
1. 4 analog signal inputs, 10M sampling rate, 14bit.
2. Single ended 16 channel, differential 8 channel voltage signal input AD, sampling rate 100K, 16 bit.
3. 4 current signal inputs, 100k, 16bit, 16K FIFO per channel.
4. 4-way DA, 100K, 16bit.
5. Two 32-bit reversible counters with input photoelectric isolation.
6. 8-way digital signal output.
7. 16 channels of high-speed synchronous pulse signal output, high-speed programmable pulse output.
8. Support high-speed DMA data transmission.
9. On board 512MB SDRAM.
