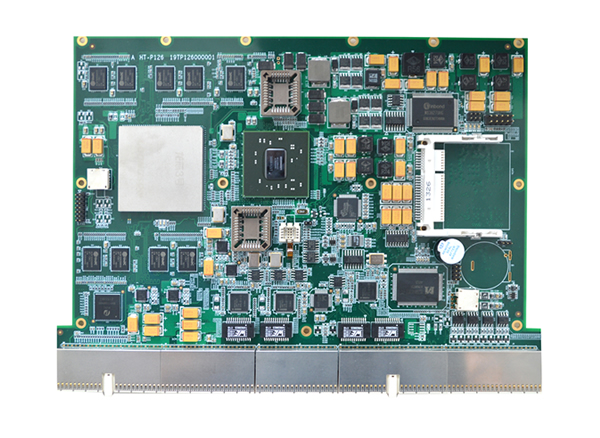

6U Loongson motherboard

Release:2019-01-20 14:52:05    Source:Beiren Technology    View:3519

Product features

※ Adopting Longxin 3A3000+7A1000 architecture.
※ Surface mount memory, stable and reliable.
※ Supports onboard CFast cards.
※ Supports VGA, LVDS, DVI display interfaces.
※ Rich I/O interfaces.

Product details

System
CPU The Loongson 3A3000 processor has a default main frequency of 800MHz, which can be configured.
Memory Onboard 8GB DDR3 memory
Chipset Longxin 3A+7A
CPCI bus PCI 32-bit/33MHz supports up to 7 CPCI peripherals
Display
Bridge piece Longxin 7A1000
Display interface 1. Supports one VGA display interface, with a maximum resolution of 1920 x 1080 and a graphics memory capacity of 512MB; 2. Supports a single 18bit LVDS display with a resolution of 1280 x 800; 3. Support one DVI display interface
storage device
SATA Supports two SATA interfaces, one connected to the onboard CFast card holder, and the other wired for output
I/O
Serial port Supports two RS232 and two RS422 interfaces
USB interface 4 x USB 2.0 interface (Rear)
Keyboard/Mouse 1 x PS/2 keyboard and mouse (Rear)
Ethernet 4 x 10/100/1000M network controller (Rear)
audio frequency The sound card controller complies with AC97 specifications and realizes playback and recording functions
source
Power supply type +5V±5%,+3.3V±5%
Power consumption 38W
Institutions and Environment
working temperature  -40℃~+70℃
Working humidity 5% to 90%, no condensation at 25 ℃
Specifications and dimensions 6U 4HP CompactPCI® 233mm×160mm
operating system
System support Winning the bid for domestic operating systems such as Kirin
