System characteristics

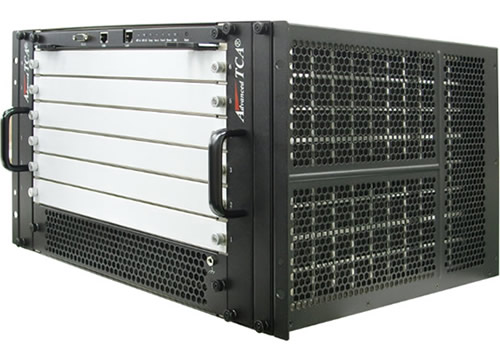

6U19 standard chassis, horizontal card insertion, rack mounted.
2 Fabric slots, 4 Node slots, supporting 8U6HP280mm FTM and 8U6HP70mm RTM.
Dual star 40Gbps Fabric channel, Dual star GbE Base channel.
2 AC input power modules or 2 DC input power modules, 1+1 redundant.
The maximum power supply capacity is 2000W+2000W Two pluggable fan modules, with blowing on the right and drawing on the left for even heat dissipation.
Supports cooling capacity of front slot 400W/slot and rear slot 40W/Slot.
1 chassis management module with 6 temperature sensors at the air outlet.
It can monitor and control the power supply, temperature, and fan, and automatically alert in case of faults.
Supports multiple communication methods such as 10/100 Base/T, RS232, IPMB, etc. to manage the chassis.
Supports IPMI1.5 or SIMP (Simple Interface Management Protocol).

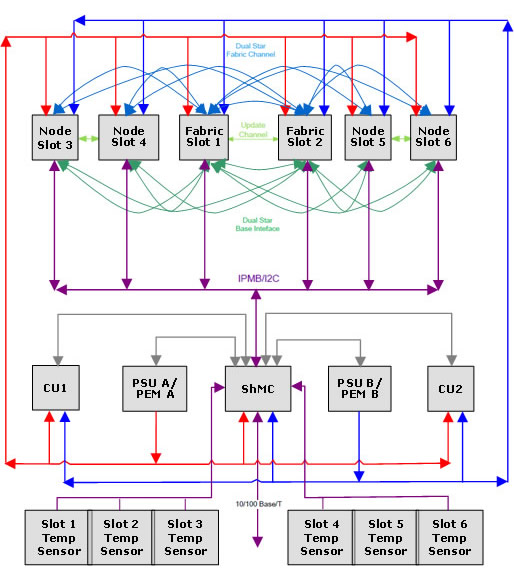

System structure
