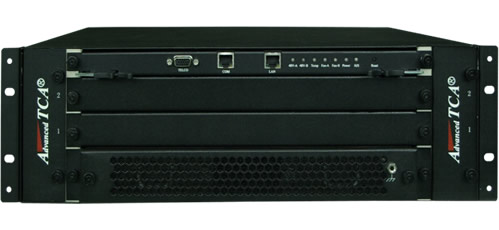

3U ATCA system platform

Release:2019-01-20 14:52:53    Source:Beiren Technology    View:3545


System characteristics

3U19 standard chassis, horizontal card insertion, rack mounted.
2 business data slots, supporting 8U6HP280mm FTM and 8U6HP70mm RTM.
Full Mesh 10Gbps Fabric Channel, Dual Star GbE Base Channel.
2 AC input power modules or 2 DC input power modules, 1+1 redundant.
The maximum power supply capacity is 850W+850W.
2 pluggable fan modules, right blowing and left exhaust, 1+1 redundancy, uniform heat dissipation.
Supports a maximum heat dissipation capacity of 300W/slot.
1 chassis management module with 3 temperature sensors at the air outlet.
It can monitor and control the power supply, temperature, and fan, and automatically alert in case of faults.
Supports multiple communication methods such as 10/100 Base/T, RS232, IPMB, etc. to manage the chassis.
Supports IPMI1.5 or SIMP (Simple Interface Management Protocol).

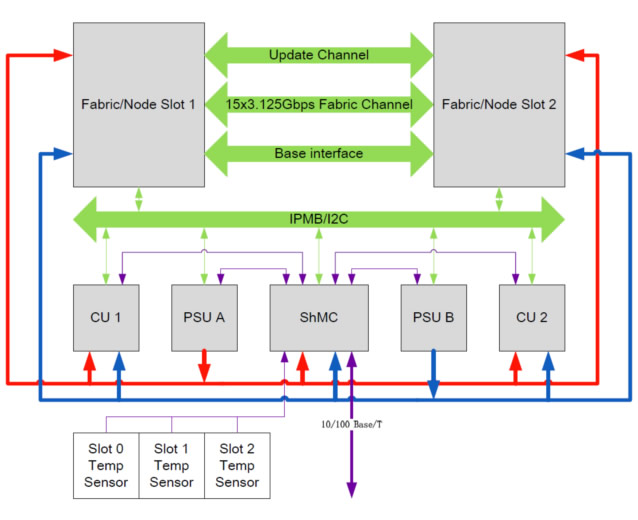

System structure
