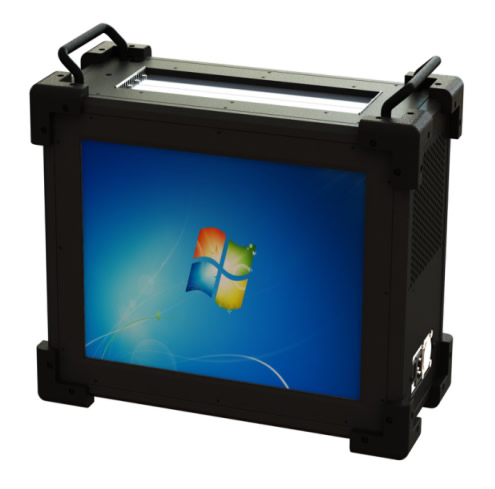

4U PXI-E Portable System Platform

Release:2019-01-21 11:49:13    Source:Beiren Technology    View:3496

System parameter

Portable reinforced chassis structure, aluminum profile structure.
Small in size and light in weight, suitable for desktop or in car system applications.
Supports 3U4HP standard CPCI, PXI, PXI-E card insertion, and the card insertion panel signal interface is located on the upper side of the chassis, facilitating on-site wiring operations.
Install a 15 "LCD screen and touch screen on the front of the chassis.
Supports 6U4 slot CPCI, 2.16, and H.110 buses.
Install a 300W ATX power supply inside the chassis.
Reserve a hard disk tray inside the chassis.
A replaceable fan disk is installed on the side of the chassis to provide forced ventilation and heat dissipation for the system.
Working temperature: 0 ℃~50 ℃, optional wide temperature design, consult technical personnel for details.
Storage temperature: -20~70 ℃.
Humidity: 5% to 90%, no condensation.

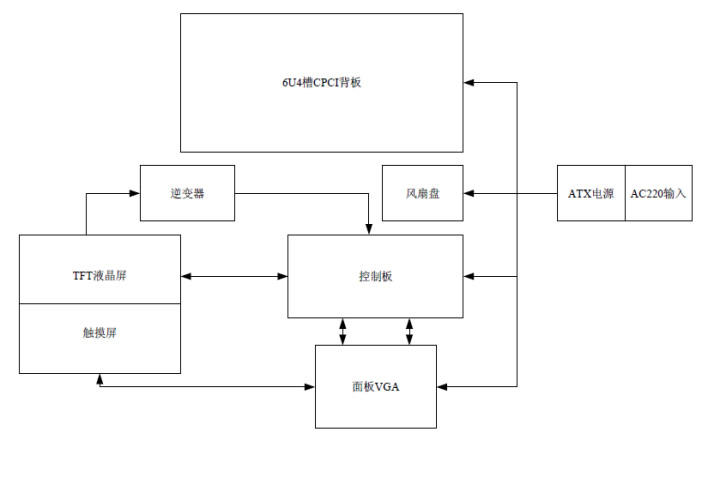

System structure
