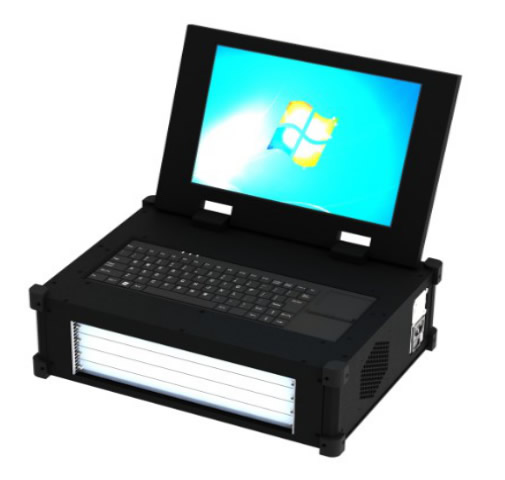

3U CPCI-E Portable System Platform

Release:2019-01-21 11:44:30    Source:Beiren Technology    View:3569

System parameter

Portable reinforced chassis structure, aluminum profile structure. Small in size and light in weight, suitable for desktop or in car system applications.
Supports 6U4HP standard CPCI card insertion, with the card insertion panel signal interface located on the upper side of the chassis for convenient on-site wiring operations.
Install an integrated keyboard on the front of the chassis.
Assemble a foldable 15 "LCD screen and touch screen.
Supports 6U4 slot CPCI, 2.16, and H.110 buses.
Install a 300W ATX power supply inside the chassis.
Reserve a hard disk installation bracket inside the chassis.
A replaceable fan disk is installed on the side of the chassis to provide forced ventilation and heat dissipation for the system.
Working temperature: 0 ℃~50 ℃, optional wide temperature design, consult technical personnel for details.
Storage temperature: -20~70 ℃, optional wide temperature design, consult technical personnel for details.
Humidity: 5% to 90%, no condensation.

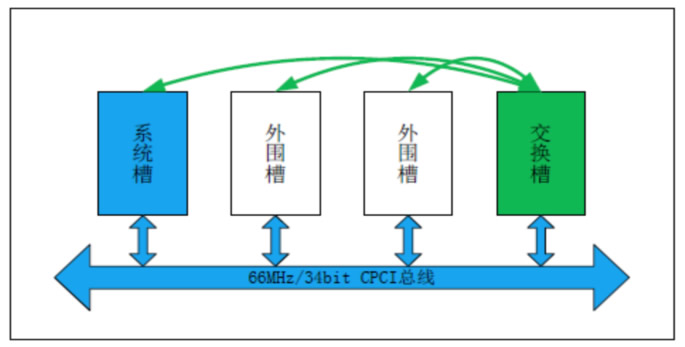

System structure
