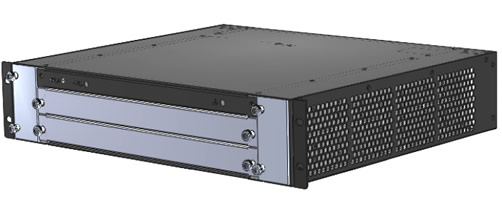

2U ATCA system platform

Release:2019-01-20 14:53:16    Source:Beiren Technology    View:4614


Standard specification

IEEE 1101.1/10/11; PICMG3.0 R3.0

System characteristics

Supports up to 2 slots.
Supports 8U6HP 280mm front card insertion and 8U6HP 70mm rear card insertion.
Point-to-point backplane.
Redundant hot swappable fan disk.
Optional System Control Protocol.
Optional PEM or PMM module.
Working environment temperature: 0-50 ℃.
Storage temperature: -20~+85 ℃.

Technical parameter

Model 792841002-xxx
Specifications 2U2S
Backboard
Base passageway 1000 Base_T
Card insertion direction horizontal direction Fabric passageway 3.125 Gbps LVDS
External dimensions (W x H x D, mm) 482.6 x 88 x 386 Node slot 2
weight 6.8kg Exchange slot 0
Heat dissipation capacity Right in and left out Topological structure Point to point
Maximum 200W per slot IPMB Point to point
Controllable speed Update passageway have
colour black CLK1 have
Power supply capacity Dual DC-48V or dual AC 220V, with a maximum output power of 800W CLK2 have
System Control Protocol IPMI 1.5 or SIMP CLK3 have
