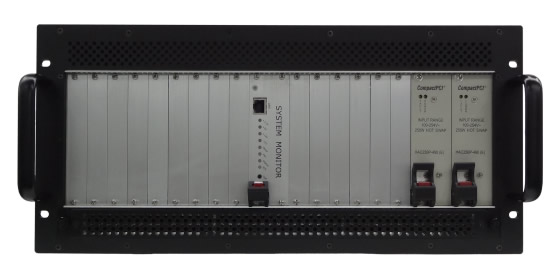

5U CPCI-S system platform

Release:2019-01-21 11:40:27    Source:Beiren Technology    View:4924

System parameter

Reinforced chassis structure, aluminum profile structure. Small in size and light in weight, suitable for desktop or in car system applications.
Support 3U4HP standard CPCI card insertion, 160mm front card insertion.
Install a 3U5 slot CPCI-S backplane inside the chassis.
Bus: Supports 2 PCI Ex8, 2 PCI Ex4, 4 SATA, 4 USB 2.0, and 4 USB 3.0.
Bus topology: All buses are in single star mode.
Install 1+1 redundant AC power supply inside the chassis.
Install a pluggable monitoring module inside the chassis, which can detect voltage, temperature, and fans.
A pluggable fan disk is installed under the chassis to provide uniform ventilation and heat dissipation for the system.
Working temperature: 0 ℃~50 ℃, optional wide temperature design, consult technical personnel for details.
Storage temperature: -20~70 ℃.
Humidity: 5% to 90%, no condensation.

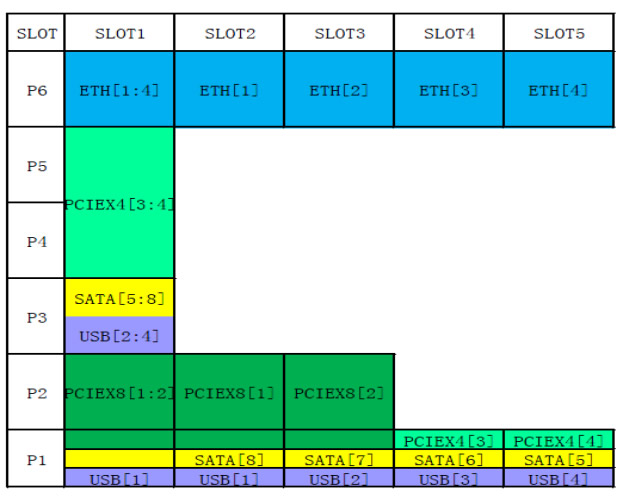

System structure
