System parameter

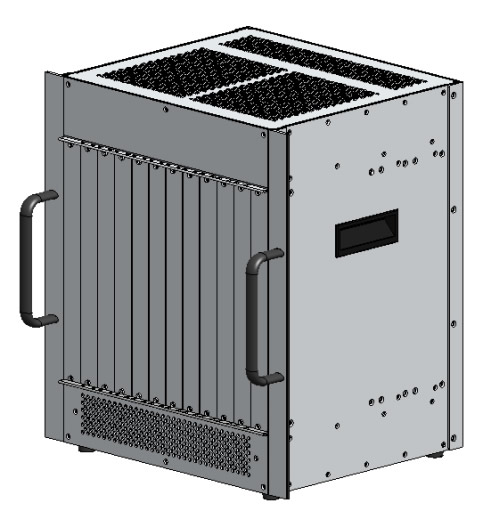

9U10 slot portable chassis, vertical card insertion, aluminum profile structure.
Supports 10 6U5HP160mm FTMs and 10 6U5HP RTMs.
Customized backboard for customers.
Direct input of external DC power supply, 1+1 redundant fan disk.
Meet VITA46.0, VITA46.3, VITA46.4, and VITA48.1 with optional VITA46.10.
It can monitor and control the power supply, temperature, and fan, and automatically alert in case of faults.
Working temperature: 0-50 ℃, optional wide temperature design, consult technical personnel for details.
Storage temperature: -40~70 ° C humidity (non working state): 60 ° C 95%; 30 ° C 95% non condensing state.

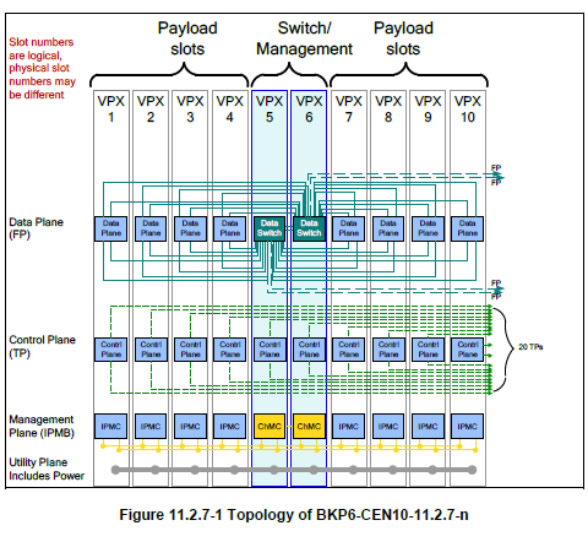

System structure
