System parameter
6U portable chassis, vertical card insertion, chassis body, made of aluminum alloy material.
Supports up to 8 3U5HP slots and can be configured with a backplane according to customer requirements.
Meet VITA46.0, VITA46.3, VITA46.4, and VITA48.1 with optional VITA46.10.
1 AC input power module with a maximum power supply capacity of 1200W.
Bottom fan module with air inlet from the bottom.
The built-in chassis management module can monitor the power supply, temperature, and fan. If a fault occurs, automatic alarms can be triggered, and IPMC module support is optional.
Working temperature: -40~75 ° C (optional three protection), optional wide temperature design, please consult the manufacturer for details.
Storage temperature: -40~85 ° C humidity (non working state): 60 ℃ 95%; 30 ℃ 95% non condensing state.

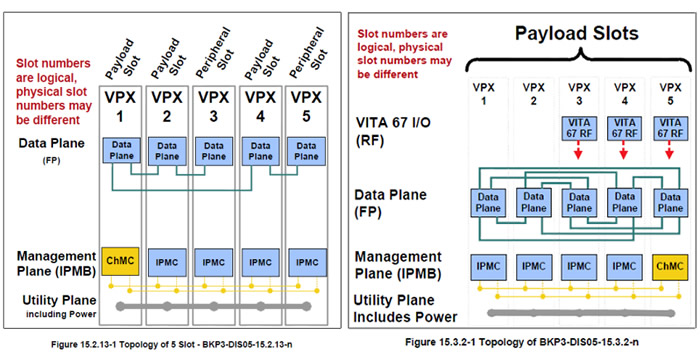

System Block Diagram
