System parameter

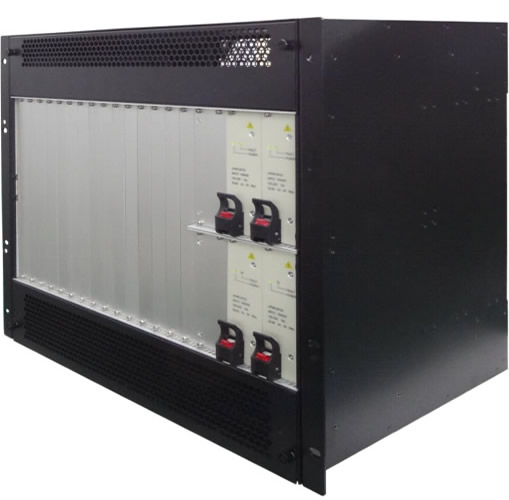

9U19 standard chassis, vertical card insertion, rack mounted installation.
Front card insertion depth 160mm, rear card insertion depth 80mm.

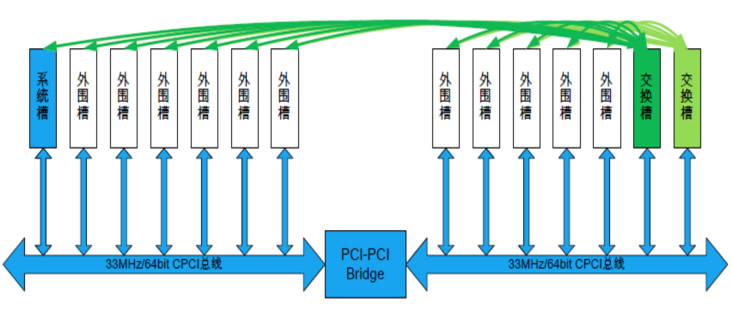

Supports 21 slot backplane, supports CPCI, 2.16, and H.110 buses.
Six 3U8HP CPCI power slots are reserved in the chassis, which can support N+1 or N+N redundant power supply methods.
A 6U16HP power input module is reserved at the back of the chassis, which can support AC or DC input, and can support dual AC, dual DC, or mixed AC/DC power supply methods.
There are removable fan discs at the top and bottom of the chassis, which can provide forced ventilation and heat dissipation for the system.
There is a system monitoring module installed inside the chassis, which can monitor and control the operating temperature, fan speed, and power supply voltage of the system.
Working temperature: 0 ℃~50 ℃, optional wide temperature design, consult technical personnel for details.
Storage temperature: -20~70 ℃.
Humidity: 5% to 90%, no condensation.
